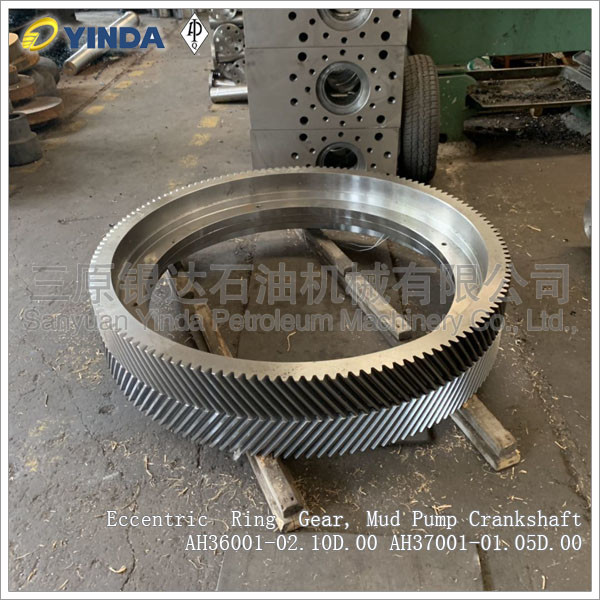

Eccentric Ring Gear, Mud Pump Crankshaft AH36001-02.10D.00 AH37001-01.05D.00 RS11308A.02.010 GH3161-02.10.00
Eccentric Ring Gear, Mud Pump Crankshaft AH36001-02.10D.00 AH37001-01.05D.00 is herringbone. When assembly, the herringbone bore and crankshaft are of interference fit and fastened with bolts and lock nuts.
The gear is held in place with bolts and locknuts, but the gear pilot diameter may utilize a light shrink fit onto the crankshaft.
Position the crankshaft vertically with the single eccentric side up, supporting it from beneath with the gear-mounting flange.
Slide the gear over the pilot on the crank.This may require heating the gear. If that is the case, then be sure to uniformly heat all sides to approximately 200°F, and only heat as much as is necessary.
Install and tighten the bolts on the gear as per the Torque Chart on page 53. Always use new bolts when mounting the main gear.
| Usage: | Drill Rig | Application: | Conveying Mud And Flushing Fluids |
| Structure: | Piston Pump | Standard Or Nonstandard: | Standard |
| Type: | Mud Pump | Product Name: | Mud Pump |
| Oem: | Applicable | Condition: | New |
Mud Pump Parts Model We Can Do
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| HRSB | RSF-1300 | RSF-1600 | | | | | | |
| RG | RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 | | | | |
| Lanzhou | 3NB1000C | 3NB1300C | 3NB1600F | 3NB1600L | | | | |
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | | | | |
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | | | | |
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | | | |
| RUSSIA | UNBT-1180L | UNBT-950A | UNB-600 | | | | | |
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T is the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details. Then we issue you an PI for your confirmation. You will be requested to do pr-e paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4) How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
More customer view:13-TSCmudpumpparts9-yindapump.com.pdf
